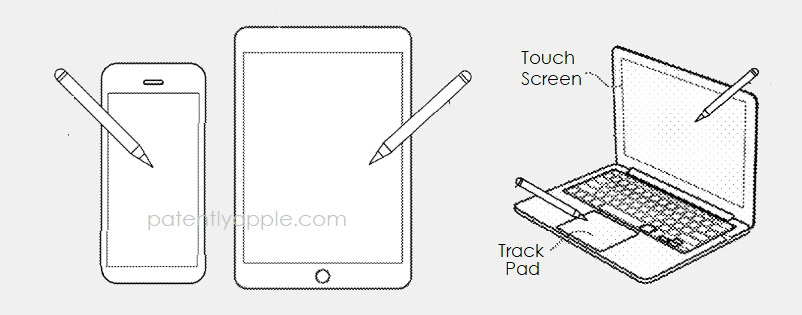

Apple won a U.S. patent for a photo-sensing display system that works with an advanced stylus. The filing outlines a Pencil that your iPad, iPhone, or even MacBook display and trackpad can see, measure, and track with far more detail than today’s capacitive setup.
PatentlyApple reported the grant and highlighted what sets it apart. The patent shifts detection from simple touch and inductive sensing to optical sensing. In short, the display becomes an eye that reads light patterns from the stylus to learn not just where you point, but how you hold, tilt, and rotate it.
Don’t miss the best of The Mac Observer
Set us as a preferred source and our Apple reporting ranks higher in your Google Search results and Discover feed — one tap, no account changes.
How the system works
The display uses micro-LED, OLED, or LED elements as both pixels and optical sensors. Angular filters limit the angles of light that pass, which cuts false inputs from glare, refraction, or water on the screen. That improves reliability when you draw in bright rooms or work outdoors.
Apple describes three stylus types. A passive stylus reflects patterned light so the display can read position and tilt. A semi-active stylus adds tip or body sensors that lock onto modulated light from the screen. An active stylus includes its own light emitters and detectors, allowing the Pencil to send and read light signals for precise tracking, even while hovering.
What you can do with it
Rotation detection is the headline feature. You rotate the Pencil, and the system reads that axial change to control stroke texture, shading, and brush behavior with the precision of a real pencil barrel. You also get cleaner hover and tilt data, which improves cursor placement and reduces jitter as you sketch or annotate.
The system supports more than one stylus at a time by using unique light modulation. That lets two people draw on the same canvas or lets you switch tools instantly without input confusion. It also aligns with Apple’s micro-LED roadmap, hinting at future iPads or MacBooks that read stylus light patterns directly through the panel.
You get tools that react to rotation, better hover, fewer false taps, and shared input. Artists gain nuance. Note-takers gain speed. If Apple ships it, you will feel the difference the first time you twist the pencil and watch the brush respond.
