Yes, you can add a Time Capsule or AirPort Extreme to your existing Wi-Fi network using Bridge Mode, and it’s actually pretty simple. Whether you want to use the device for Time Machine backups or to extend your network without router conflicts, Bridge Mode ensures smooth performance and compatibility with your main router.
Table of contents
What Is Bridge Mode?
Bridge Mode turns your Time Capsule or AirPort Extreme into a network device that doesn’t assign IP addresses or act as a router. Instead, it passes network traffic through to your existing router. This prevents issues like Double NAT, which can interfere with performance or features like remote access.
Use Bridge Mode when:
- You’re connecting the AirPort to another router (like Eero or Xfinity)
- You want the Time Capsule to act as a backup drive or file server only
- You’re extending your Wi-Fi using Ethernet without creating a second network
When to Use Bridge Mode with Time Capsule or AirPort
Bridge Mode is ideal for:
- Time Machine Backups: You want to use your Time Capsule solely for Time Machine without disrupting your router.
- File Sharing: You want to access shared drives without adding a second DHCP server.
- Extending a Network: You’re adding the AirPort to a mesh system or another Wi-Fi router.
It’s not necessary if you’re setting up the Time Capsule as your main router, but if it’s joining an existing setup, especially via Ethernet, Bridge Mode is the safest route.
Here’s how to set it up properly:
What You’ll Need:
- Your Time Capsule or AirPort Extreme
- A Mac with AirPort Utility
- An Ethernet cable
- Your main router already set up and online
Step 1: Connect via Ethernet
Plug the Time Capsule or AirPort Extreme into your existing router using an Ethernet cable.
Step 2: Open AirPort Utility
On your Mac, open AirPort Utility (found in Applications > Utilities or via Spotlight).
Step 3: Select the Device
Click your Time Capsule or AirPort when it appears, then click Edit.
Step 4: Enable Bridge Mode
- Go to the Network tab
- Set Router Mode to Off (Bridge Mode)
This turns off NAT and DHCP, so the device doesn’t create its own separate network.
Step 5: Set Up Time Machine (Optional)
- Click the Disks tab
- Enable File Sharing and Secure Shared Disks
- Set a password if desired
- Click Update to save changes
Once the AirPort restarts, it’s fully configured in Bridge Mode and ready for use.
Tips for Time Machine Backups
If you’re using the Time Capsule for backups:
- Open System Settings > Time Machine on your Mac
- Click Add Backup Disk
- Select the Time Capsule (it may show as a network disk)
- Enter your password if prompted
Pro Tip: For faster and more reliable backups, use Ethernet instead of Wi-Fi when possible.
Frequently Asked Questions
Yes. In Bridge Mode, you can enable file sharing and use it like a basic NAS for documents or media.
Yes, but you’ll need to use Bridge Mode and connect via Ethernet for best performance.
No. It simply disables the routing function. You can still use it as a Wi-Fi access point if you enable wireless.
Apple no longer sells them, but they still work well for backups and network storage — especially in Bridge Mode.
Yes. Just make sure all additional AirPorts are in Bridge Mode and connected properly (ideally via Ethernet).
Summary
- Use Bridge Mode when connecting to another router
- Connect your Time Capsule or AirPort via Ethernet for best results
- Configure using AirPort Utility on a Mac
- Optional: Enable Time Machine backups and file sharing
- Avoid using AirPort as a second router — this creates network conflicts
Using Bridge Mode is the best way to add a Time Capsule or AirPort Extreme to your existing network without creating interference or double NAT issues.

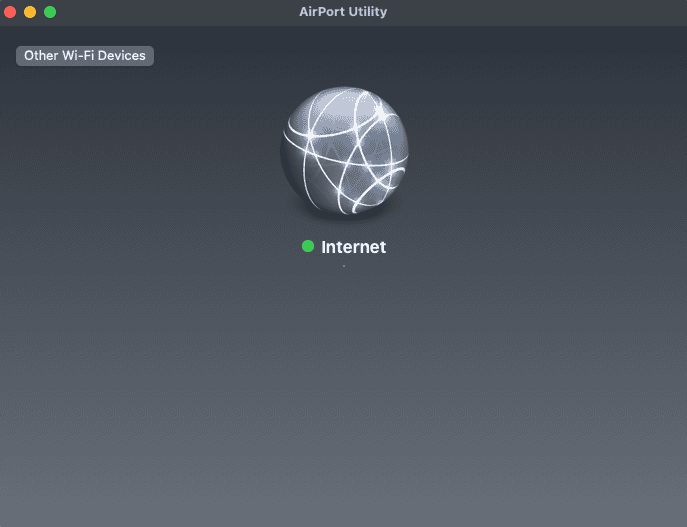

Are the other devices in the Airport Utility screen in the article non-Apple devices? And if so, how did they show up in the app? And can Airports extend a network consisting of non-Apple devices?
Yes. The other devices shown in AirPort Utility can be non-Apple routers or access points. They appear because AirPort Utility scans the local network for Bonjour-advertised base stations and also shows any upstream router the AirPort is connected to, even if that router isn’t made by Apple. in Bridge Mode, an AirPort Extreme or Time Capsule doesn’t create or manage the network; it simply joins the existing one and extends it by acting as an access point, passing traffic through the main (non-Apple) router without doing its own routing or DHCP.
