Keeping a folding iPhone cool is a major challenge for Apple’s hardware designers. When a device folds in half, the trapped heat builds up quickly and can slow down performance. To solve this problem with the new iPhone Duo, Apple came up with a creative hardware solution. It built a custom cooling mechanism directly into the central folding joint to move heat safely away from the main processor.
A flexible graphite pipe moves heat across the phone halves
The core of this thermal setup relies on a flexible graphite pipe routed right through the hinge. According to a recent interview with company executives, this pipe transfers heat from one side of the device to the other. Spreading the heat across both halves gives the internal hardware a much larger surface area for cooling.
This pipe works alongside a custom vapor chamber that floats in the middle of the device. Apple also uses a special metal over foam material to connect the internal chip to the vapor chamber. All these parts work together to keep the temperature low when you run heavy apps or play games.
Don’t miss the best of The Mac Observer
Set us as a preferred source and our Apple reporting ranks higher in your Google Search results and Discover feed — one tap, no account changes.

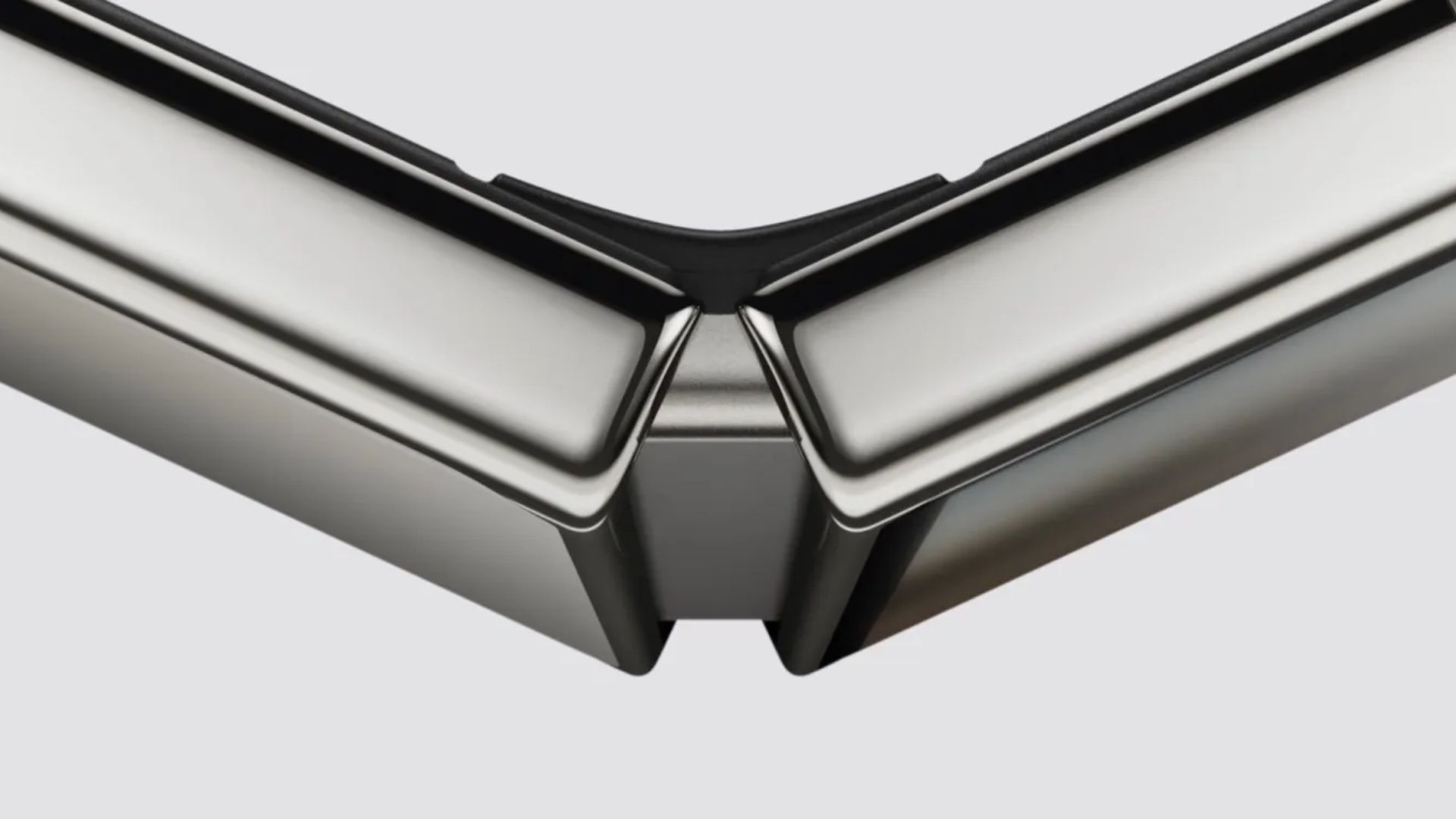

The hinge hardware must survive thousands of daily folding cycles
Creating this setup required the thermal and mechanical teams to work closely together. The graphite material needs to be flexible enough to bend every time you close the phone. It must maintain its shape and keep transferring heat without breaking down over time.
While traditional flagship models like the iPhone 18 Pro and the larger iPhone 18 Pro Max rely on a standard solid vapor chamber, the folding form factor demanded a completely different approach. By using the hinge as a thermal bridge, the company can maintain high performance in a slim body. If you plan to secure one during the upcoming iPhone Duo pre-orders, you will have a device that handles heat in a new way.
