Apple Pencil Not Connecting to iPad: 8 Fixes

When your Apple Pencil is not connecting to your iPad, it usually comes down to a drained battery, loose nib, outdated iPadOS, Bluetooth glitches, or even an incompatible iPad model.

Sometimes the problem is as simple as a case blocking the magnetic connector, while in other cases, it may require resetting network settings or re-pairing the Pencil entirely. Let’s go through all possible solutions!

Troubleshooting Apple Pencil Connection Problems

1. Charge the Pencil

Low battery is the most common problem. Make sure your Apple Pencil has enough power:

• First generation: Plug into the iPad’s Lightning port.
• Second generation or Apple Pencil Pro: Snap it magnetically to the side of the iPad.
• USB-C Pencil: Remove the cap and plug it into the USB-C port.

Let the Apple Pencil charge for 10 minutes before trying again.

2. Restart and Toggle Bluetooth

1. Go to Settings > Bluetooth, turn Bluetooth off, wait a few seconds, and turn it back on.
2. Restart your iPad and try pairing again.

3. Forget and Re-Pair the Pencil

1. In Settings > Bluetooth, find the Apple Pencil under My Devices, tap the info icon, and select Forget This Device.

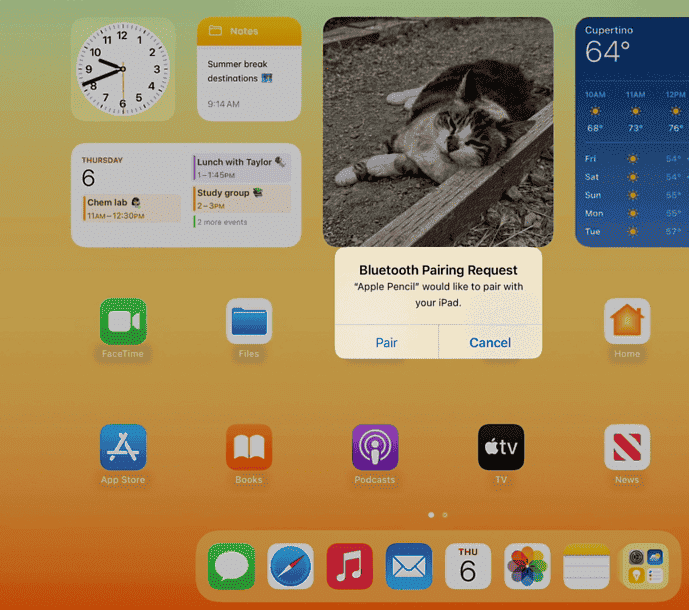

2. Then connect or attach the Pencil again and tap Pair when prompted.

This also helps when your Apple Pencil is not writing.

4. Force Restart with Pencil Attached

Some users fixed connection issues by restarting the iPad while the Pencil remains attached:

1. Connect the Pencil to the iPad (magnetically or via port).
2. Force restart the iPad.
3. After a restart, detach and reattach the Pencil.

5. Tighten the Pencil Tip or Clean it

If your Pencil seems paired but does not write, check the nib. If it is loose, tighten it carefully, as it may solve the issue.

A dirty nib or port can block the connection. Remove the tip, clean it gently with a damp microfiber cloth, and dry it before screwing it back on. Clean the iPad’s port or magnetic edge if needed.

If it’s broken, replace the Apple Pencil tip and check for improvements.

6. Reset Network Settings (for USB-C Pencil or pairing oddities)

If pairing via USB-C fails:

1. Go to Settings > General > Reset > Reset Network Settings.
2. Confirm Wi Fi info will be erased. Then try to pair again.

7. Compatibility Check

Make sure your Apple Pencil and iPad are compatible. For example, older iPads need the original Pencil, while newer ones work with the second generation or Pro models.

8. Try LightBlue App for Persistent 10th Gen Pairing Issues

Some users with a 10th-generation iPad and first-generation Pencil fixed pairing by installing a third-party app called LightBlue from the App Store:

1. Charge the Pencil for 5 minutes, disconnect the cable.
2. Open the LightBlue app, scan for the Apple Pencil.
3. Enter pairing code 1234 and tap pair. Use this method again if pairing is lost after reboot or charging.

Tips

• Make sure your iPad has the latest iPadOS update
• Remove iPad cases, especially those that cover the magnetic edge
• Test your Apple Pencil in Apple’s Notes app for clear input testing
• If possible, try connecting the Pencil to another iPad to rule out hardware issues
• Contact Apple Support or visit an Apple Store if none of these steps help

Frequently Asked Questions

Summary

1. Charge your Pencil properly for at least 10 minutes.
2. Restart the iPad and toggle Bluetooth off and on.
3. Forget the device in Bluetooth settings, then re-pair.
4. Force restart the iPad while the Pencil is attached.
5. Tighten the pencil tip or clean it.
6. Reset network settings if USB-C pairing fails.
7. Confirm both iPad and Pencil are compatible.
8. Use LightBlue app pairing if you have persistent pairing issues with the 10th-gen iPad and the 1st-gen Pencil.
9. Remove any case that could block the magnetic connection.
10. Contact Apple Support if none work.

Conclusion

Troubleshooting Apple Pencil connection issues can feel tricky, but most of the time, it is easy to fix. Start with charging, restarting, and re-pairing. Ensuring compatibility and keeping your iPad software updated helps prevent future issues. If all else fails, Apple Support is your next stop.

With these simple steps, you will likely have your Pencil working again in no time.
